Machine d'estampage à chaud hydraulique de style stabilité
Machine d'estampage à chaud hydraulique de style stabilité
Machine d'estampage à chaud hydraulique de style stabilité
Machine d'estampage à chaud hydraulique de style stabilité
Machine d'estampage à chaud hydraulique de style stabilité
  • Machine d'estampage à chaud hydraulique de style stabilité
  • Machine d'estampage à chaud hydraulique de style stabilité
  • Machine d'estampage à chaud hydraulique de style stabilité
  • Machine d'estampage à chaud hydraulique de style stabilité
  • Machine d'estampage à chaud hydraulique de style stabilité

Machine d'estampage à chaud hydraulique de style stabilité

    Type de paiement: L/C,T/T,Western Union
    Incoterm: FOB,CFR,CIF,EXW,FCA
    Quantité de commande minimum: 1 Set/Sets
    Délai de livraison: 7 jours

Informations de base

Modèle: HH-TC632

Additional Info

Détails d'emballage: Caisse en bois

productivité: 100 Sets/month

marque: KC

transport: Ocean

Lieu d'origine: Dongguan

Capacité d'approvisionnement: 100 Sets/month

Certificats : CE

Description du produit

Hydraulic embossing stamping machine //Usage and characters

Gild-01

  • Gilding - paper, leather, wood, plastic,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  • Hydraulic drive, pressure more large.

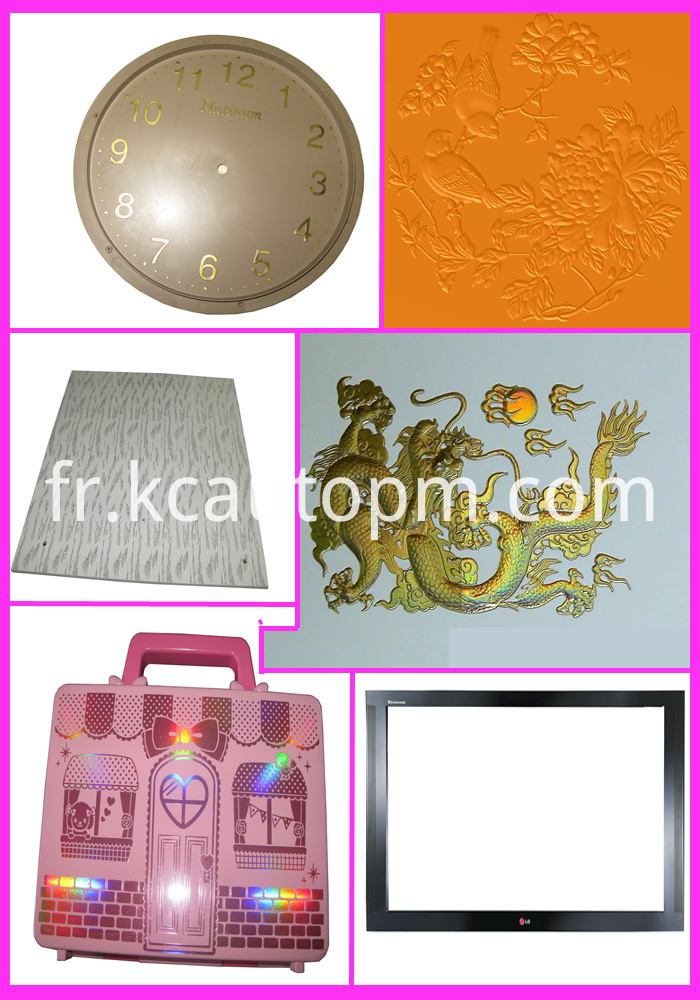

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing
  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  • Woodiness objects baking-burns and Impress;
  • Leather bronzing and Molding;
  • Paper products concavo indentation.
  • Graduated disc of clock bronzing.
  • Die-cutting.


Hydraulic embossing stamping Machine //Parameter

HH-TC631

  • Hot plate area:300 ×400 mm
  • Working table area:480 ×600mm
  • Max printing pressure:20,000 Kg
  • Up and down distance:100mm
  • Heat wattage: 6×500W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC .


HH-TC632

  • Hot plate area:400 × 400 mm
  • Working table area:480 ×600mm
  • Max printing pressure:20,000 Kg
  • Up and down distance:100mm
  • Heat wattage: 6×500W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC


Works supply :110V-220VPower supply;46# Hydraulic oil

Package list  Size: 1.06*1.03*1.80m, 0.75*0.55*0.83m

Gross weight: 650 kg; 85 kg;

CBM: 1.96524, 0.342375

H.S.Code: 8443198000

Certificate: CE

Hydraulic embossing stamping machine //Advantage

  • Bench made ofhigh strength cast steel forging, has a very high flatness and stability;
  • Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
  • Relay control program is running, easy operation, easy maintenance;
  • Pairs of buttons control the stamping head up and down, security is greatly enhanced;
  • Hydraulic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
  • Heating pipe heating, rapid heating, replacement is simple and convenient;
  • Heating plate can be removed to facilitate installation and replacement gilt template;
  • Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
  • Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
  • Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
  • Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
