Imprimante d'écran de table à vide de précision manuelle

Payment Type:
Min. Order:
1 Set/Sets
Delivery Time:
15 Days
  • Description du produit
Product Attributes



Supply Ability & Additional Informations

Détails d'emballageCaisse en bois

productivité50 sets / month


Lieu d'origineDongguan

Capacité d'approvisionnement50 sets/month

Certificats CE Certificate

Type de paiementL/C,T/T


Délai de livraison15 jours

Packaging & Delivery
Selling Units:
Package Type:
Caisse en bois


PSM-5070V Manual Precision screen printer with vacuum table //Usage and characters

  • Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
  • Precision micro-adjustment working table ensure high precision screen printing
  • Inspiratory function of flat screen printing machine is suitable for easy printing process go a bit thin products, such as: paper, PVC film, plastic film, textiles and other printing;
  • With manual operation, which will help the product to remove and place;
  • Bench grinding stainless steel countertops, suction uniform;
  • Widely used in paper packaging and mirror printing, glass printing, machine panel, sticker printing, combined with a variety of processes, you can achieve a UV matte, UV Glitter, UV partial varnish and coating processes;
  • Also widely used in water transfer paper, heat transfer paper printing.

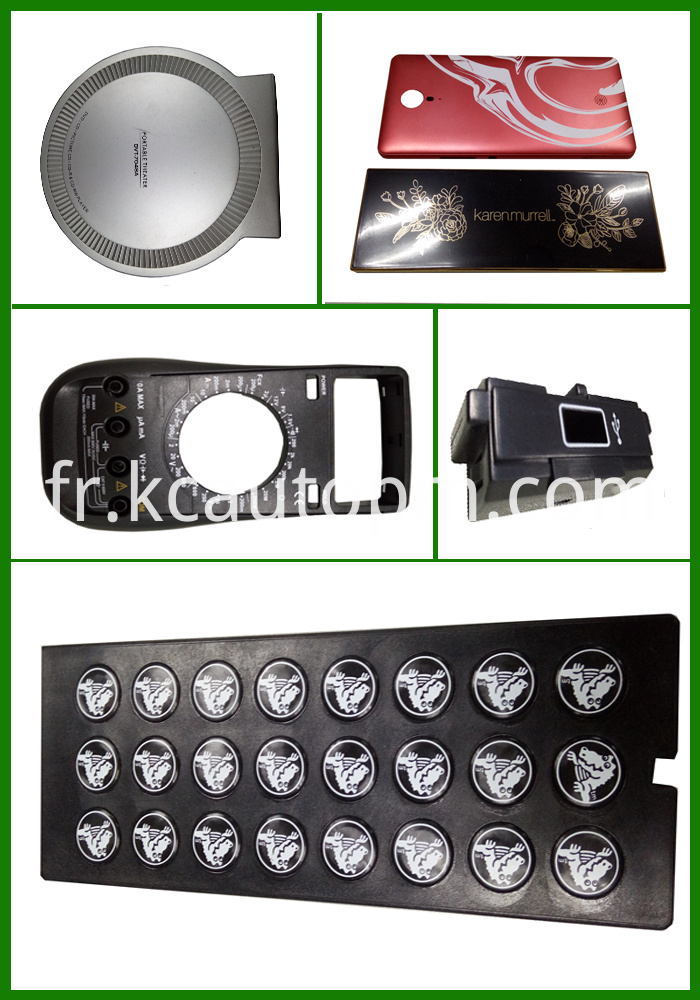

The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case

PSM-5070V Flat Manual screen printing Machine with vacuum table//Parameters

PSM-5070V  High-precision Manual screen printer with vacuum working table

  • Worktable area:550×750mm
  • Max printing area:500×700mm
  • Max size of frame: 800×1000mm
  • Net weight:110kg.
  • Colour Number: 1;
  • Operating: manual;
  • Max object Height: 150mm;
  • Range adjustment of working table: +-10mm.

PSM-6080V  High-precision Manual screen printer with vacuum working table:

  • Worktable area:650×850mm
  • Max printing area:600×800mm
  • Max size of frame: 900×1100mm
  • Net weight:130kg.
  • Colour Number: 1;
  • Operating: manual;
  • Max object Height: 150mm;
  • Range adjustment of working table: +-10mm.

Works supply :110V-220V Power supply.

Outer dimension:1100×660×960mm;

Net weight: 73KG;

Package dimension:1100×800×930mm;

Gross weight: 105.5KG;

CBM: 0.8184

H.S.CODE: 8443192190

Certificate: CE

PSM-5070V Flat Manual screen printing Machine with vacuum table //Advantage

  • Manual operating and Lower Cost;
  • With vacuum worktable. 1.5mm diameter Hole distributed evenly on working table;
  • High precision Table made by stainless and have accurate Grinding ensure High Precision screen printing.
  • Handle Micro-adjustment Screw Make Range of X and Y Movement Precision;
  • High strongly Whirlpool-type Vacuum pump installed Make objects adsorbed mightiness;
  • Precision Round-axis guide to control the Screen nip up and down.
