Machine d'estampage à chaud plat en cuir en cuir plastique
Prix unitaire: USD 2400 / Set/Sets
| Min.Order |
Prix unitaire |
| 1 Set/Sets |
USD 2400 / Set/Sets |
Modèle:H-TC1927
espèce: Machine de presse à chaud
Industrie applicable: Magasins de matériaux de construction, Usine d'aliments et de boissons, Le restaurant, Vendre au détail, Magasin alimentaire, Travaux de construction
Service hors garantie: Support technique vidéo, Support en ligne, Des pièces de rechange, Service d'entretien et de réparation sur le terrain
Où fournir des services locaux (dans quels pays existe-t-il des points de service à l'étranger): Brésil, Pérou, Indonésie, Pakistan, Inde, Espagne, Malaisie, Maroc, Kenya, Corée du Sud, Colombie, Roumanie
Emplacement de la salle d'exposition (dans quels pays existe-t-il des salles d'échantillons à l'étranger): Egypte, Canada, Royaume-Uni, États Unis, Italie, Viet Nam, Pérou, Pakistan
statut: Nouveau
Type de plaque d'impression: GRAVURE
lieu d'origine: Chine
utilisation: imprimante d'étiquettes, Imprimante de factures
degré d'automatisation: Semi-automatique
Numéro de couleur d'impression et numéro de surface: Couleur unique
période de garantie: 1 année
Argument de vente principal: Facile à utiliser
Type de marketing: Produit chaud 2019
Rapport d'essai mécanique: Fourni
Inspection d'usine vidéo: Fourni
Période de garantie des composants de base: 1 année
Composants principaux: Récipient sous pression, PLC
Taille de la plaque d'estampage: 190 * 270 mm
Détails d'emballage: Casse en bois
productivité: 20 Sets/month
marque: KC
transport: Ocean
Lieu d'origine: Dongguan
Soutenir: 100 Sets/month
Certificats : CE
Code SH: 8443198000
Hafen: Shenzhen,Guangzhou,Shanghai
Machine d'estampage à chaud pneumatique // Utilisation et personnages
Échantillons
Données techniques
- Gilding - paper, leather, wood, plastic,
- Baked - wood products, baked painting, gift box packaging;
- Embossing - paper, leather, cloth.
- Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
- Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
- Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
- Pneumatic drive, pressure large.
- Paper Gilding, Leather Impression, Wood ware Baking
- Paper Concave-convex embossing, Cloth hot stamping,
- Plastics Bronzing
- Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
- Woodiness objects baking-burns and Impress;
- Leather bronzing and Molding;
- Paper products concavo indentation.
- Graduated disc of clock bronzing.
|
Machine d'estampage à chaud pneumatique // paramètre
|
H-TC1520
- Hot plate area:150× 200 mm
- Working table area:320 ×400mm
- Max printing pressure:2,000-3000 Kg
- Up and down distance:45mm
- Heat wattage:1200W
- Foil in feed: Motor Drive
- Temperature adjustment:0-300oC .
|
H-TC1927
- Hot plate area:190 × 270 mm
- Working table area:320 ×400mm
- Max printing pressure:2,000-3000 Kg
- Up and down distance:45mm
- Heat wattage:1200W
- Foil in feed: Motor Drive
- Temperature adjustment:0-300oC
|
|
H-TC2129
- Hot plate area:210×290 mm
- Working table area:320 ×400mm
- Max printing pressure:2,000-3000 Kg
- Up and down distance:45mm
- Heat wattage:1000W
- Foil in feed: Motor Drive
- Temperature adjustment:0-300oC .
|
H-TC3025
- Hot plate area:300 × 250 mm
- Working table area:320 ×400mm
- Max printing pressure:2,000-3000 Kg
- Up and down distance:45mm
- Heat wattage:1000W
- Foil in feed: Motor Drive
- Temperature adjustment:0-300oC
|
Machine d'estampage à chaud pneumatique // Avantage
- Table can be pulled into and pulled out the pick and place of convenience products;
- Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
- Table lifting screw adjustment, simple and convenient;
- Relays for process control, stable operation, easy maintenance;
- The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
- leveraged cylinder pressure, the pressure is uniform and strong;
- The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
- Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
- Using high strength steel, gilt plate and table, has a very high flatness;
- Heating tube for heating, heat supply is stable, easy to replace
|

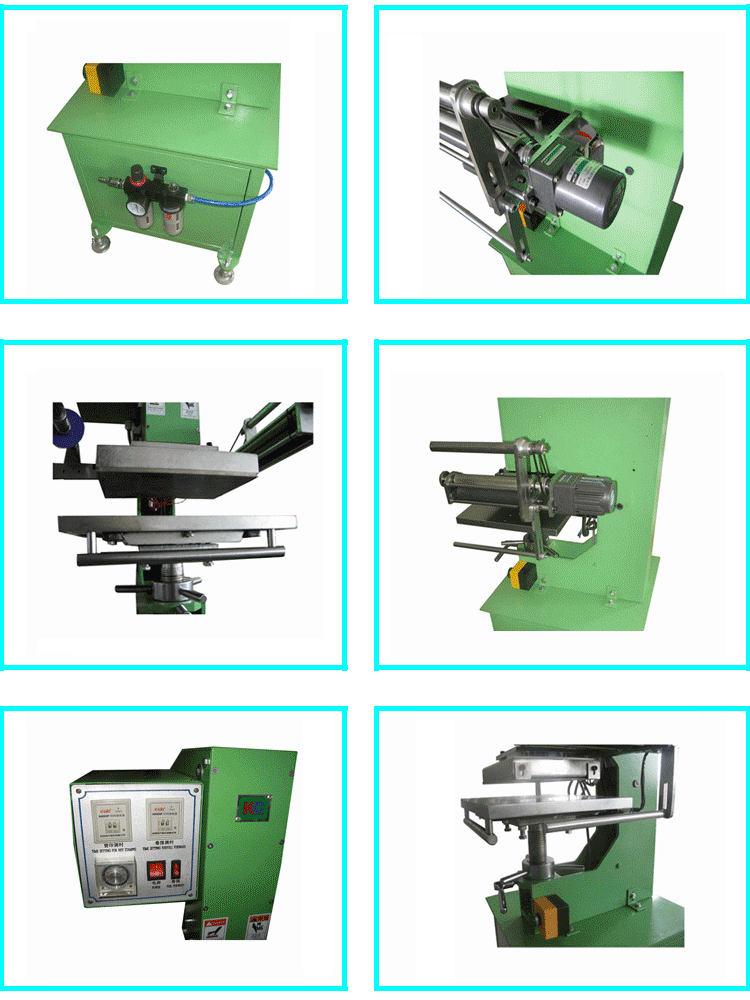

Structure
Données
Catalogue
Groupes de Produits : Machine d'estampage à chaud > Machine d'estampage à chaud pneumatique
