S-125SC Multi-function taper screen printing machine//Usage and characters
-
85mm in diameter, suitable for printing less, hollow plastic bottles, hose, there is a slight taper of the hard and soft surface material color screen.
-
Used in baby bottles, cosmetic bottles, medicine bottles, filters, ignition and other hollow containers monochrome screen printing;
-
With surface UV curing machine M-1030UVS can be UV screen printing of plastic containers;
-
Solvent ink for screen printing, UV screen printing inks, screen printing ink printing a variety of functions;
-
Upper and lower part of table type surface screen printing machine, take place after the table automatically lifting the work piece;
-
You can use the foot switch for automatic operation, the safety factor greatly increased;
-
Multi-type screen printing machine, Both printing round objects and printing taper and flat objects, hardware replacement only way a simple gas conversion, will be able to achieve a multifunctional , and reduce costs.
Application

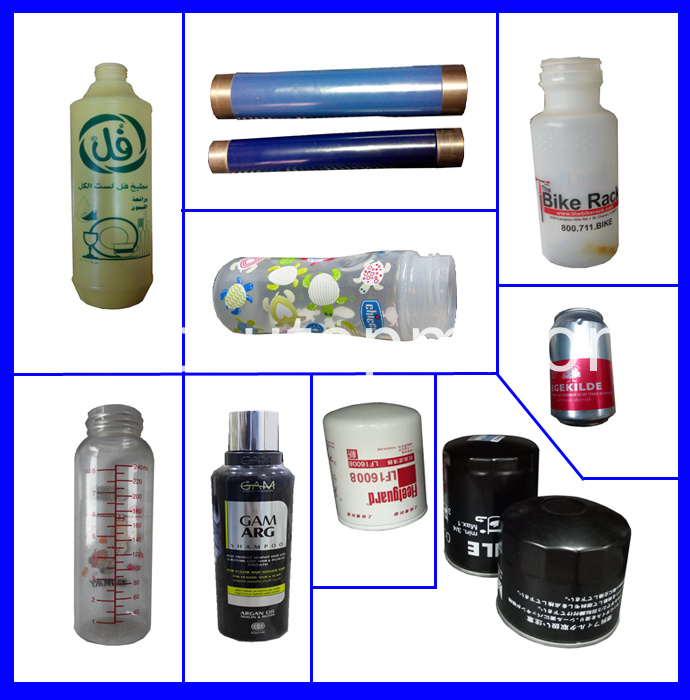

Plastics soft tubes, Bottles, containers, Bucket, Cosmetic case, any Cylinder-object, Oval-object.
S-125SC Multi-function taper screen printing Machine //Parameters
-
The max printing thickness: 200 MM;
-
Air consumption: 75 Lit/Min;
-
Outline size: 1080×850×1280MM;
-
The max printing area : 200×250MM;
-
Dimension of working table: 250mm×300mm;
-
Max printing speed: 1300Pc/H;
-
Max frame dimension: 410×350mm;
-
Stroke of Squeegee: 250mm;
-
Stroke of Table cylinder: 60mm;
-
Max Diameter of Products: 75mm`
-
Max length of Products: 300mm
-
Works supply: 110V-220V Power supply;5-7Barcompress air;
-
Outer dimension:0.80m×0.95m×1.26m
-
Net weight: 138kg
-
Package dimension:0.88m×0.78m×1.33m
-
Gross weight: 156kg
-
CBM: 0.9129
-
H.S.CODE: 8443198000
-
Certificate: CE
S-125SC Multi-function screen printing Machine//Advantage
-
Choose clamp-type Workbench can be inflatable, or may not be blowing, can be placed all types of round, oval-shaped substrates;
-
Contact with the substrate , Working table up and down, to facilitate the placement of the substrates and removed;
-
High Precision axis control. Working table up and down, smooth running, accuracy up to 0.07mm;
-
High Precision axis control movement. Screen printing pressure is uniform and reliable, the accuracy up to 0.07mm;
-
Self-balance scraper technology and back blade, to ensure uniformity of ink, ink formation;
-
Microcomputer control program operations, set up a variety of modes;
-
Four counts digital LED count, high degree of automation;
-
Printed Stroke mechanical adjustments, adjust the speed of integrated circuit digital.
-
Around the screen frame, up and down the emblem of the tune, overlay accuracy, tuning and quick
|
